AICS-0052
Protein
MLC-2a
Gene Symbol
MYL7
Gene Name
myosin light chain 7
Structure
sarcomeric thick filaments

Obtain AICS-0052

Obtain Donor Plasmid

AICS-0052

MYL7 in WTC-mEGFP (mono-allelic tag)
Cell line media

Single, mid-level plane of live hiPSC-derived cardiomyocytes expressing mEGFP-tagged MLC-2a protein. Twelve days after the onset of differentiation, cells were plated on PEI and laminin coated glass and imaged in 3D on a spinning disk confocal microscope 20 days later (32 days total after the onset of differentiation). Scale bar, 10 µm.

thumbnail image
thumbnail image
thumbnail image
Video thumbnail
Video thumbnail
NCBI Isoforms:n
crRNA Target Site:GGAGACGAGAAAGAGGAATG
Linker: GSGSPGSGSG
Cas9:Wildtype spCas9
mEGFP Insert
mEGFP Insert

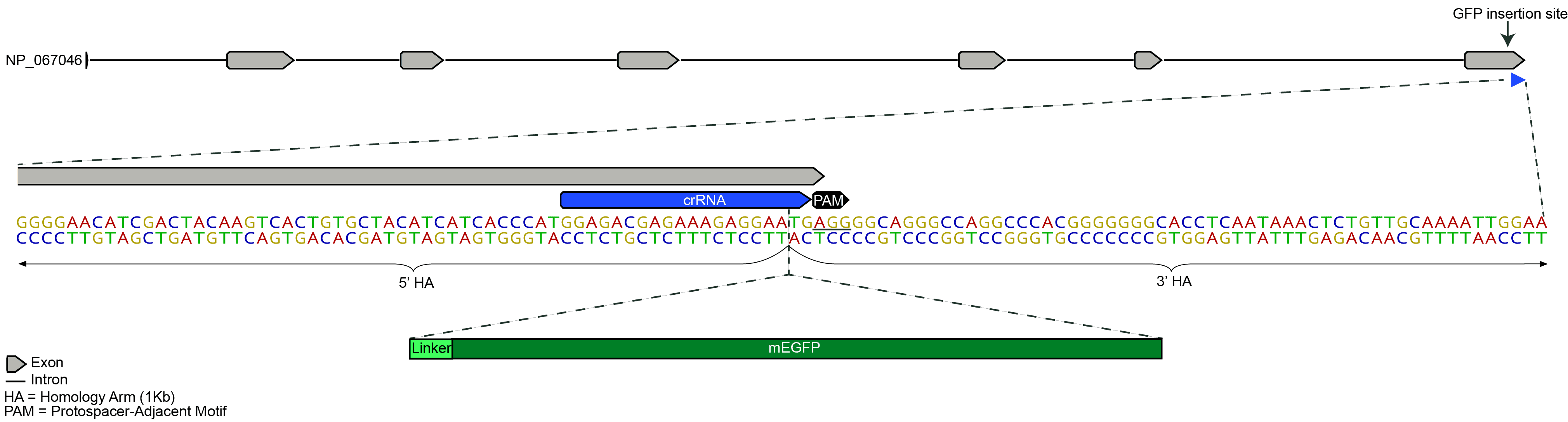

Top: MYL7 locus; Bottom: Zoom in on mEGFP insertion site at MYL7 C-terminus; For more information on tagging transcriptionally silent genes in hiPSCs see: Roberts et al. 2018. Scarless gene tagging of transcriptionally silent genes in hiPSCs to visualize cardiomyocyte sarcomeres in live cells. bioRxiv doi:10.1101/342881
